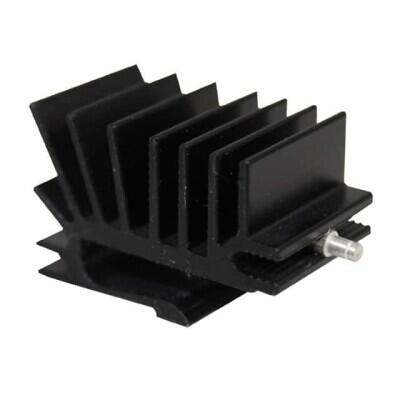

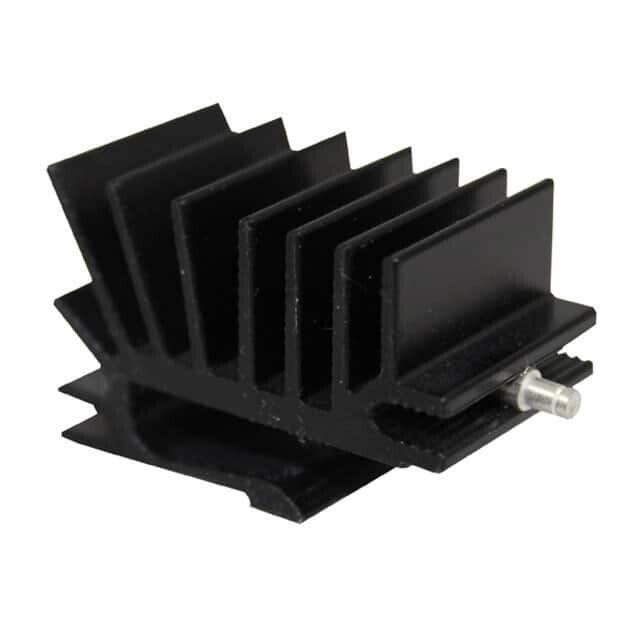

M47118B011000G - AAVID, THERMAL DIVISION OF BOYD CORPORATION - MAX CLIP HEATSINK | |
Packaging | Bulk |
Material | Aluminum |
Diameter | - |
Length | 1.180" (29.97mm) |
Shape | Rectangular, Angled Fins |
Type | Board Level, Vertical |
Width | 0.764" (19.40mm) |
Package Cooled | TO-126, TO-220, TO-247 |
Attachment Method | Clip and PC Pin |
Power Dissipation @ Temperature Rise | - |
Thermal Resistance @ Forced Air Flow | - |
Thermal Resistance @ Natural | - |
Fin Height | 1.240" (31.50mm) |
Material Finish | Black Anodized |
