(Jason Krinder of Beagleboard.org announced Seeed Studio BeagleBone® Green at Bay Area Maker Faire, the latest version has removed the battery backed up Real Time Clock (RTC).) One of Seeed Studio's motto is “Grow the Difference”, which has now become part of the culture of the company. This is not just reflected from what we are doing in popularizing open source culture, but also from our products. Ever since the company funded, we are continuously creating our own open platform to differentiate from the existing one such as Seeeduino vs Arduino. This time we would like to introduce a new member of those unique products----Seeed Studio Beaglebone® Green.
Seeed Studio BeagleBone® Green is a joint effort by BeagleBone®.org and Seeed Studio and it was derived from BeagleBone® Black. If you ever heard of BeagleBone® Black, you may know that BeagleBone® Black was the most popular board in the BeagleBone® board family. It is much cheaper than previous version while inherits all the good features of BeagleBone®. Seeed Studio BeagleBone® Green is better than BeagleBone® Black, we have kept almost all the good features of BeagleBone® Black such as the tiny size, abundant interface and strong expansibility, while at the same changed it a bit to make it more powerful.
The main change is replacing the HDMI interface with 2 Grove connectors. Grove is a great invention by Seeed, it is a modular standardized connector prototyping system by which you are able to build applications without soldering and jump wires. With the rapid development of the grove system, more and more sensors, actuators, displays are joining in the grove family, all of them are integrated the standard grove connector, so that you can connect the Seeed Studio BeagleBone® Green to them with a simple cable. So far we have produced more than 30 Groves that work well with Seeed Studio BeagleBone® Green, and the number is increasing. Apart from that, we also changed the 5V barrel to be micro USB host, so that you can power the board more conveniently.
Note
101020013 Grove - RTC is not compatible with Seeed Studio BeagleBone® Green as it requires 5V.
101020013 Grove - High Precision RTC works in 3.3V and compatible with Seeed Studio BeagleBone® Green.
Despite of the changes we made, Seeed Studio BeagleBone® Green is still fully compatible with BeagleBone® Black and applied with all the BeagleBone® Black capes. Even though Seeed Studio BeagleBone® Green has all these advantages, we did not increase the price, actually the price of Seeed Studio BeagleBone® Green is much cheaper, it may be the most low-cost BeagleBone® in history. What we want is to provide a BeagleBone® that is not only more powerful and easy-to-use but also reachable to most people. Please don’t hesitate to choose Seeed Studio BeagleBone® Green if you need a BeagleBone® for your project, I am sure you will like it.
BeagleBone® Black VS Seeed Studio BeagleBone® Green
Check the Compatible License from BeagleBoard.org.
BeagleBone® Black MSRP: USD 55 | Seeed Studio BeagleBone® Green MSRP: USD 44 |
AM3358 1GHz ARM® Cortex-A8 | AM3358 1GHz ARM® Cortex-A8 |
512MB DDR3 RAM | 512MB DDR3 RAM |
4GB 8-bit eMMC on-board flash storage | 4GB 8-bit eMMC on-board flash storage |
3D graphics accelerator | 3D graphics accelerator |
NEON floating-point accelerator | NEON floating-point accelerator |
2x PRU 32-bit microcontrollers | 2x PRU 32-bit microcontrollers |
USB client for power & communications | USB client for power & communications |
USB host | USB host |
Ethernet | Ethernet |
2x46 pin headers | 2x46 pin headers |
HDMI port | 2x Grove connectors |
Technical details |
|

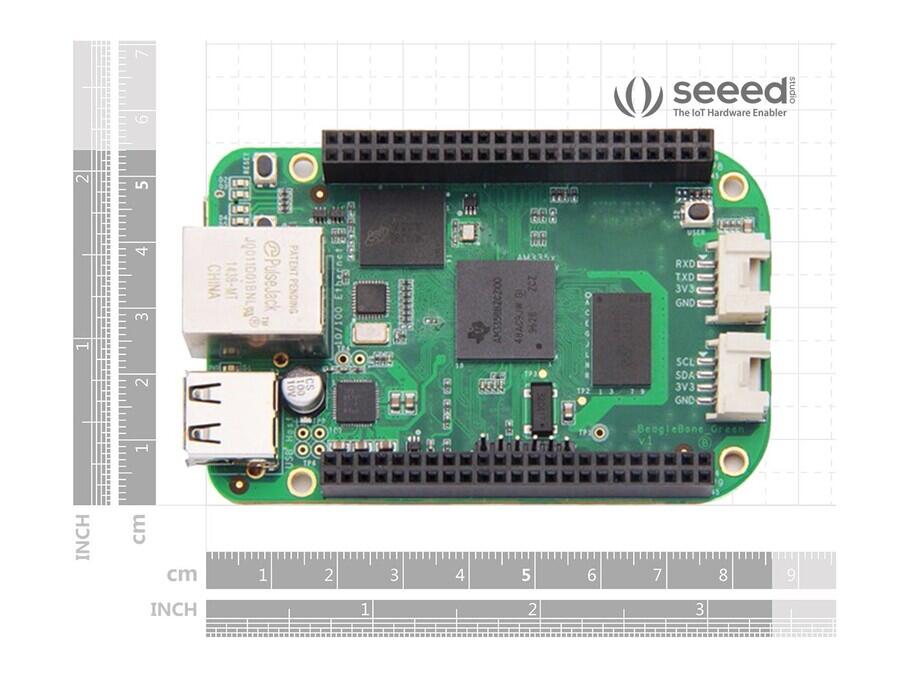

Dimensions | 126mm x76mm x24mm |
Weight | G.W 81g |
Battery | Exclude |
Part List |
|
SeeedStudio BeagleBone Green | 1 |
USB Cable | 1 |
User Guide | 1 |
