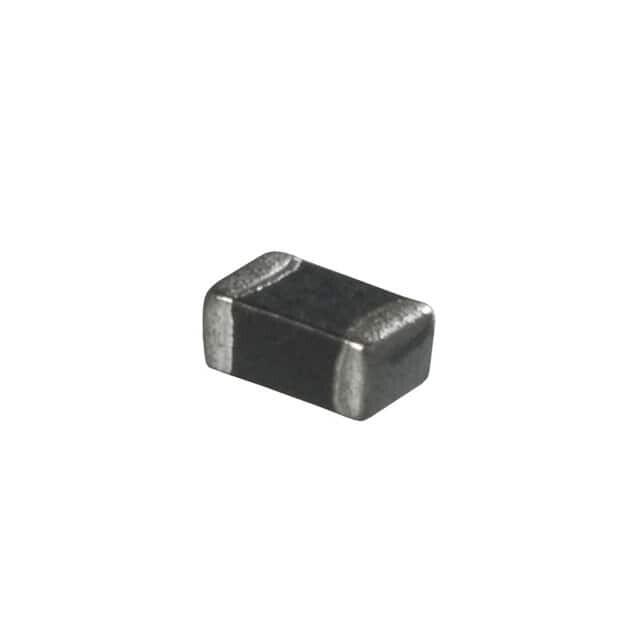

LI0603G121R-10 - LAIRD-SIGNAL INTEGRITY PRODUCTS - FERRITE BEAD 120 OHM 0603 1LN | |
Packaging | Cut Tape (CT) |
Package / Case | 0603 (1608 Metric) |
Filter Type | Power, Signal Line |

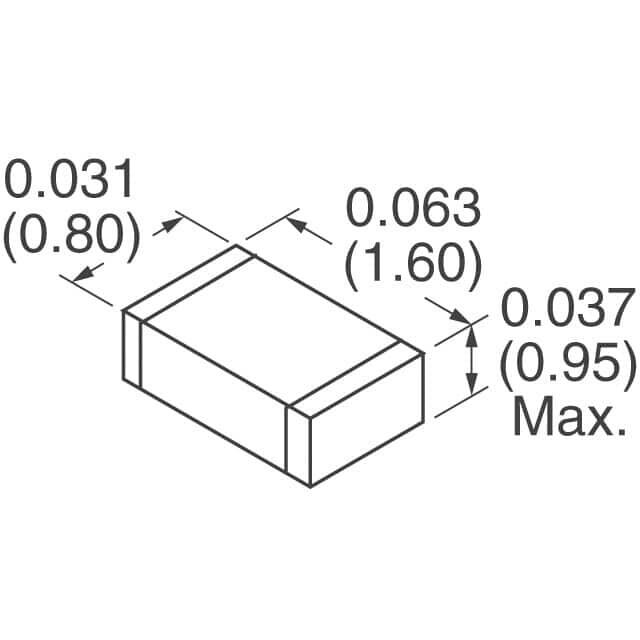

Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 125°C |
Ratings | - |
Height (Max) | 0.031" (0.80mm) |
Current Rating (Max) | 1A |
DC Resistance (DCR) (Max) | 200mOhm |
Number of Lines | 1 |
Impedance @ Frequency | 120 Ohms @ 100 MHz |
