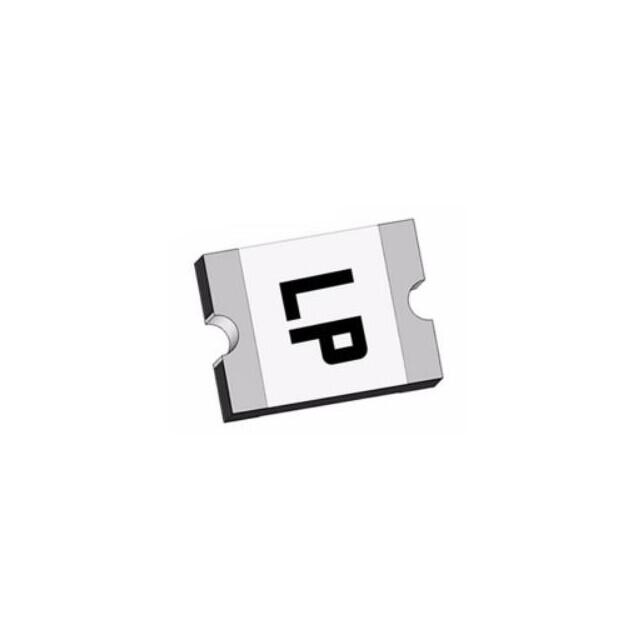

PTSLR12106V450 - EATON - ELECTRONICS DIVISION - PTC RESET FUSE 6V 4.5A 1210 | |
Packaging | Cut Tape (CT) |
Package / Case | 1210 (3225 Metric), Concave |
Size / Dimension | 0.127" L x 0.101" W (3.22mm x 2.58mm) |
Mounting Type | Surface Mount |
Type | Polymeric |
Operating Temperature | -40°C ~ 85°C |
Lead Spacing | - |
Current - Hold (Ih) (Max) | 4.5 A |
Current - Trip (It) | 9 A |
Voltage - Max | 6V |
Ratings | - |
Height - Seated (Max) | - |
Thickness (Max) | 0.047" (1.20mm) |
Current - Max | 50 A |
Time to Trip | 2 s |
Resistance - Initial (Ri) (Min) | 2 mOhms |
Resistance - Post Trip (R1) (Max) | 14 mOhms |
