Features:
Worldwide 2.4GHz ISM band operation
Multi frequency point: 126 Frequency Point to meet the needs of multi-point
Maximum output power: +20dBm; PA gain: 20dBm; LNA gain: 10dBm
Communication: SPI
Internal Integration Intelligent ARQ Baseband Protocol Engine
Antenna: IPEX
Package: DIP-8

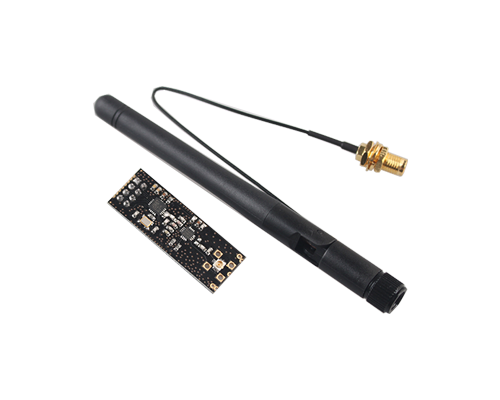

NF-02-PE 2.4G Modül - AI Thinker | |
Kullanım / Uygulama | 3-in-1 desktop bundles,VoIP headsets,RF remote controls for consumer electronics,Home and commerc |
Modül / Modül Numarası | NF-02-PE 2.4G |
Modülasyon | 2.4GHz |
Veri Hızı | 2Mbps / 1Mbps / 250Kbps |
Boyut / Ölçü | 40.8*15.3 mm |
Çip | nRF24L01+ |
Modülasyon | GFSK |
Destekleyici | Six-Channel Data Reception,Support 1 bit RSSI output |
