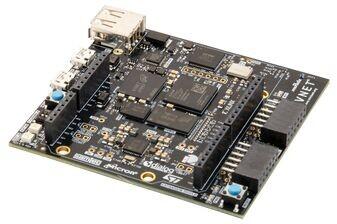

MiniZed is a Zynq 7Z007S single-core development board. With the advent of the latest cost-optimized portfolio from Xilinx, this board targets entry-level Zynq developers with a low-cost prototyping platform.
- Xilinx Zynq XC7Z007S SoC
- Micron 512 MB DDR3L
- Micron 128 Mb QSPI flash
- Micron 8GB eMMC mass storage
- On-board USB to JTAG and debug UART circuit
- Murata "Type 1DX" wireless module with 802.11b/g/n Wi-Fiand Bluetooth 4.1 plus EDR and BLE (Bluetooth Low Energy)
- USB 2.0 host interface with Microchip PHY
- Dialog Semiconductor DA9062 PMIC (Power Management IC)
- Arduino-compatible shield interface
- 2 x Pmod-compatible interfaces
- ST Micro LIS2DS12 Accelerometer and Temperature sensor
- ST Micro MP34DT05 digital MEMS microphone
- Reset button, user button, user switch, 2 x user bi-element LEDs
