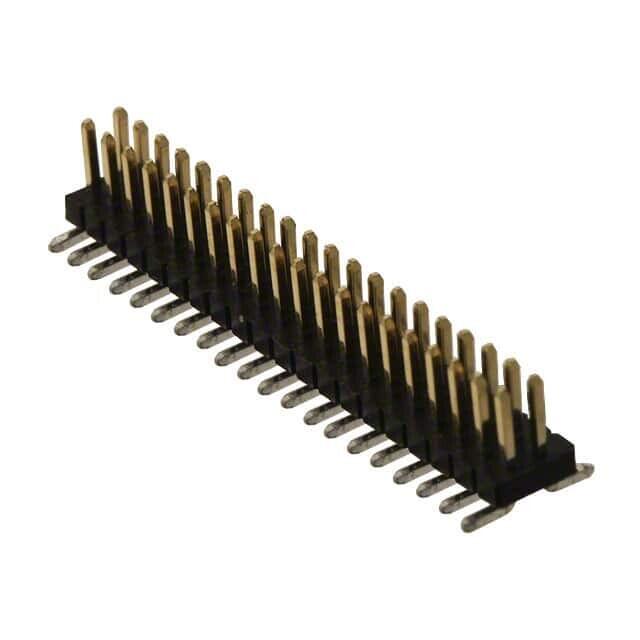

M50-3602042 - HARWIN INC. - CONN HEADER SMD 40POS 1.27MM | |
Packaging | Bulk |
Features | - |
Connector Type | Header |
Voltage Rating | - |
Current Rating (Amps) | 1A |
Mounting Type | Surface Mount |
Number of Positions | 40 |
Number of Rows | 2 |
Style | Board to Board or Cable |
Operating Temperature | -40°C ~ 105°C |
Contact Type | Male Pin |
Fastening Type | Push-Pull |
Number of Positions Loaded | All |
Termination | Solder |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Contact Material | Copper Alloy |
Insulation Color | Black |
Pitch - Mating | 0.050" (1.27mm) |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
Contact Finish - Post | Tin |
Contact Shape | Square |
Contact Length - Post | - |
Insulation Height | 0.039" (1.00mm) |
Shrouding | Unshrouded |
Overall Contact Length | - |
Insulation Material | Thermoplastic |
Row Spacing - Mating | 0.050" (1.27mm) |

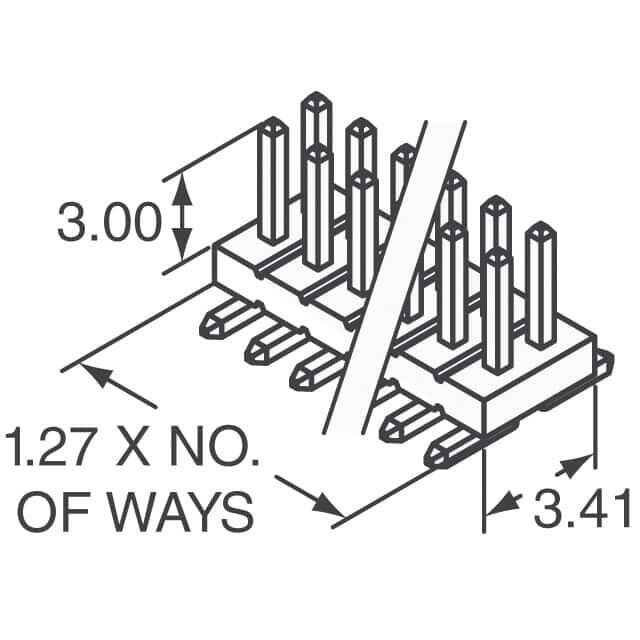

Contact Length - Mating | 0.118" (3.00mm) |
