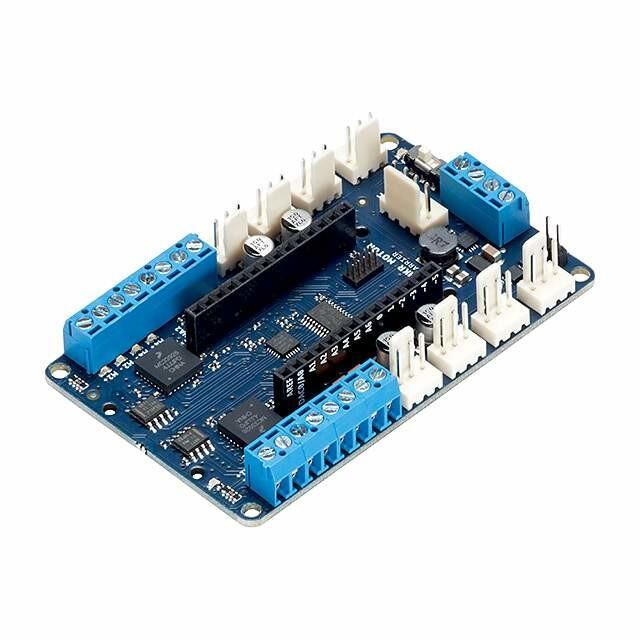

The MKR Motor Carrier is an MKR add-on board designed to control servo, DC, and stepper motors. The Carrier can also be used to connect other actuators and sensors via a series of 3-pin male headers.
The summary of features is shown below:
Microcontroller: ATSAMD11 ( Arm Cortex-M0+ processor)
Max current (MC33926): 5 Amps Peak, RMS current depending on the degree of heat sink provided
Max current (DRV8871): 3 Amps peak, current limited by current sense resistor.
Rated voltage: 6.5 to 11.1V
Reverse current protection: Yes
Over Temperature shutdown protection (for DC motor drivers): Yes
Clock speed: 48 Mhz
On board voltage regulator: 5V
Interface: Terminal block and 3 pin/4 pin header connector
Compatibility: MKR Family
The MKR Motor Carrier features two MC33926 motor drivers for high-performance DC motor control with direct connection to the MKR1000, current feedback, and capacity for up to 5 Amps (peak). In addition, there are two DRV8871 drivers that are controlled from a SAMD11 microcontroller that communicates with the MKR1000 via I2C (SPI optional). The SAMD11 is also used to control the servos, read the encoders, and read the battery voltage. There is an interrupt line connecting the SAMD11 (on PA27) and the MKR board.
Note that for extended use or high-current motors, an extra heatsink (and eventually a fan) might be required for the drivers.
When plugging the MKR1000 and the Motor Carrier, some of the pins will stop being available for you to use in your code, as they will be needed to control some of the features of the Carrier. For example, the current feedback from the two MC33926 drivers is connected directly to some of the analog pins on the MKR1000. The following list explains which pins of the MKR1000 are used to control the Carrier:
Also, some pins can optionally be connected via a soldering jumper or a 0 Ohm resistor. These pins are:
To use the Carrier, you will need to plug an MKR board (the MKR1000, MKR Zero, or other) on the headers at the center of the board. Make sure the MKR board is connected in the proper direction. You can do this by making sure the info printed on the side of the headers are matching for both the MKR board and the Motor Carrier.
Once the board is properly connected to the Motor Carrier, you can start programming the board. To control the motors, you will need to import the MKR Motor Carrier library. You can find more information about the library here. If you want to read more about how to install a library then you follow this link.
When working with motors, you will need an external source to feed the motor drivers and power up the motors. You can do this by connecting a LiPo Battery to the battery connector or using an external power source and connecting it to the VIN input on the terminal block. It is recommended to do these operations with the power switch at the OFF position. Once the external power is connected to the board, the power switch can be turned on.
Özellik | Değer |
Part Status | Active |
Platform | MKR |
Type | Power Management |
Function | Motor Controller/Driver |
Utilized IC / Part | - |
Contents | Board(s) |
