Thanks to this shield, you can now connect your MKR board to any of the industrial systems that using the RS 485 protocol.

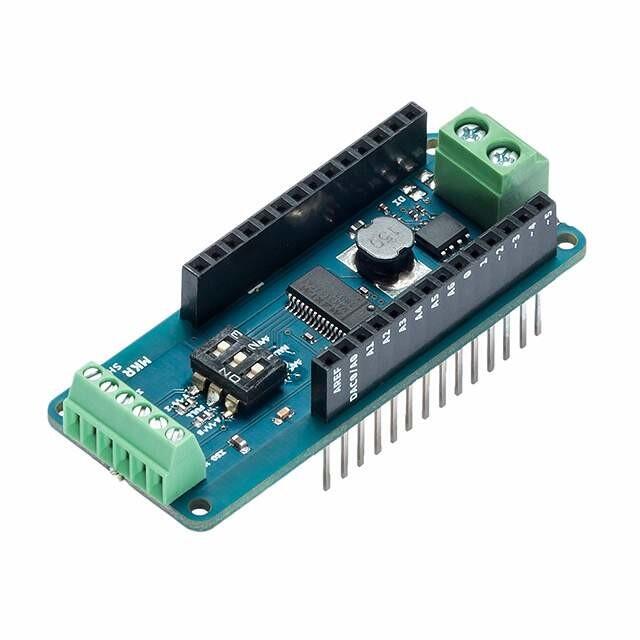

The MKR 485 shield is the ultimate expansion that allows MKR boards to connect to almost any legacy industrial system, such as industrial PLCs, controllers, drives and HMIs. Old industrial systems (e.g., machinery, heating systems, and conveyors) can to turned into IoT devices through a serial connection using the MKR 485.
The shield is based on the MAXIM MAX3157 ( Datasheet ) and provides Half / Full Duplex .
Standard operational mode: Half Duplex
Interface: Serial
Circuit Operating Voltage: 3.3 V
Transceiver: MAXIM MAX3157 (datasheet)
Buck converter: Texas Instruments TPS54232 (datasheet)
Vin (screw connector): 7 V - 24 V
Vin (header): 5 V
Compatibilty: MKR size
Switchable onboard termination resistor
Operating mode: Isolated Half / full duplex (switchable)
| Özellik | Değer |
| Part Status | Active |
| Platform | MKR |
| Type | Interface |
| Function | RS485 |
| Utilized IC / Part | - |
| Contents | Board(s) |
