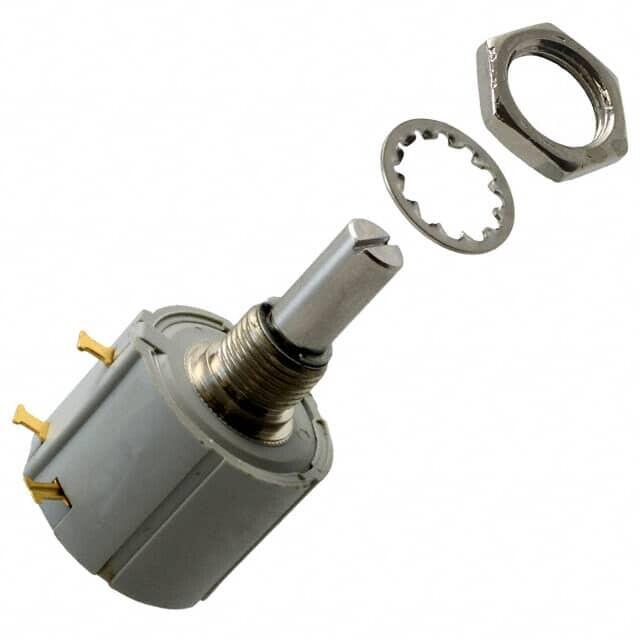

7286R500L.25 - TT ELECTRONICS/BI - POT 500 OHM 2W WIREWOUND LINEAR | |
Packaging | Bulk |
Resistance (Ohms) | 500 |
Power (Watts) | 2W |
Tolerance | ±5% |
Features | - |
Temperature Coefficient | ±20ppm/°C |
Adjustment Type | User Defined |
Mounting Type | Panel Mount |
Termination Style | Solder Turret |
Bushing Thread | 3/8-32 |
Actuator Length | 0.812" (20.63mm) |
Actuator Type | Slotted |
Built in Switch | None |
Actuator Diameter | 0.250" (6.35mm) |
Resistive Material | Wirewound |
Taper | Linear |
Rotation | 3600° |
Number of Gangs | 1 |
Number of Turns | 10 |
