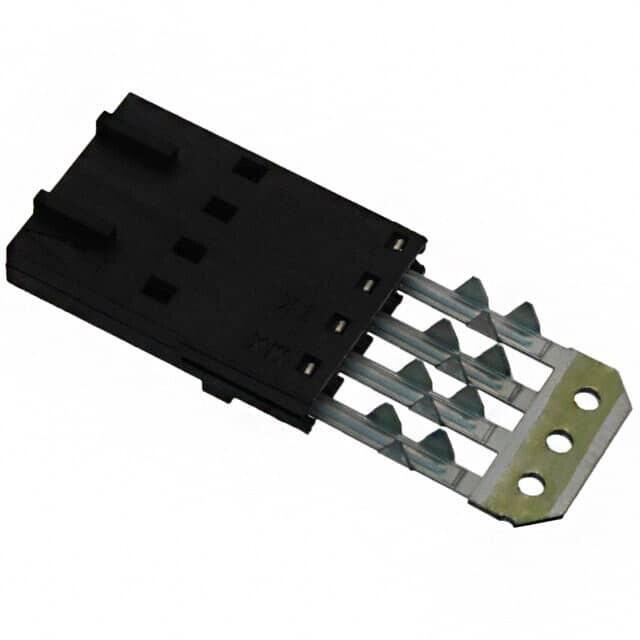

0015474043 - MOLEX - CONN FFC CIC RCPT 4POS 2.54MM | |
Packaging | Tube |
Features | - |
Contact Finish | Gold |
Voltage Rating | 250V |
Mounting Type | Free Hanging (In-Line) |
Number of Positions | 4 |
Pitch | 0.100" (2.54mm) |
Operating Temperature | -40°C ~ 105°C |
Termination | IDC |
Height Above Board | - |
Locking Feature | Latch Lock |
Material Flammability Rating | UL94 V-0 |
Actuator Material | - |
Contact Material | Phosphor Bronze |
FFC, FCB Thickness | 0.13 ~ 0.28mm, 0.30mm |
Housing Material | Polyester, Glass Filled |
Cable End Type | Straight |
Flat Flex Type | FFC, CIC |
Connector/Contact Type | Receptacle |
