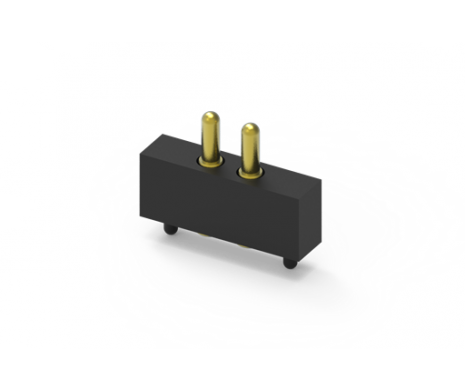

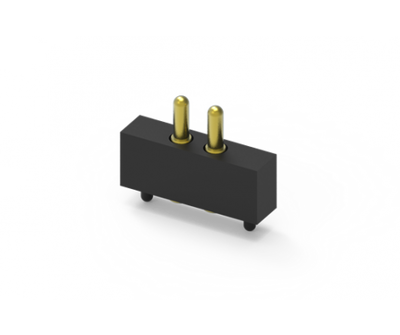

303B-443118-254-02 - ATTEND POGO PIN
A pogo pin or spring-loaded pin is a Tip of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity. Pogo pin combines the advantages of fine Aralık, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
- To avoid arcing issue, the adaptor start to power supply after connector mated fully.
- Based on Engineer drawing, shall not exceed one the working height the maximum allowed compress.
- To ensure the best usage, please operate it based supply after connector mated fully.
Conclusion- High Stroke
- High Durability
- Long Lifetime
- Ease of Attaching
- Stable Current Flow
Application:- Antenna
- Board To Board Connection
- Medical Device
- Tracking Device
- Portable Device
| 303B-443118-254-02 - ATTEND - Pogo Pin, 02 Pin, 2.54P, 10u", 7.5H 3.1 Stroke, Cap, SMT |
| ELECTRICAL | 2A |
| Voltaj Değeri | 30V |
| Contact Resistance | 50mΩ Max. at working height |
| MECHANICAL | |
| Durability | 10,000 Cycle |
| Spring Force | 45g±15g at working height |
| OTHER | |
| Gender | Male |
| Bağlantı Ucu | Solder |
| Montaj Tipi | SMT V/T |
| Number of Position | 2 |
| Yüklü Pozisyon Sayısı | 2PIN(1x2) |
| Sıra Sayısı | 1 |
| Aralık | 2.54mm |
| Contact Plating | STAINLESS STEEL |
| Product Specification Comparison Table |
| Variation | Pin Count | Total Height | Current Rating |
| Single | 1 Ping | 3.4 - 10.5 mm | 1 - 2A |
| Multiple | 2 - 4 Pin | 5 - 7.5 mm | 1 - 2A |
| WaterProof | 5 Pin | 5.4mm | 1 - 2A |
