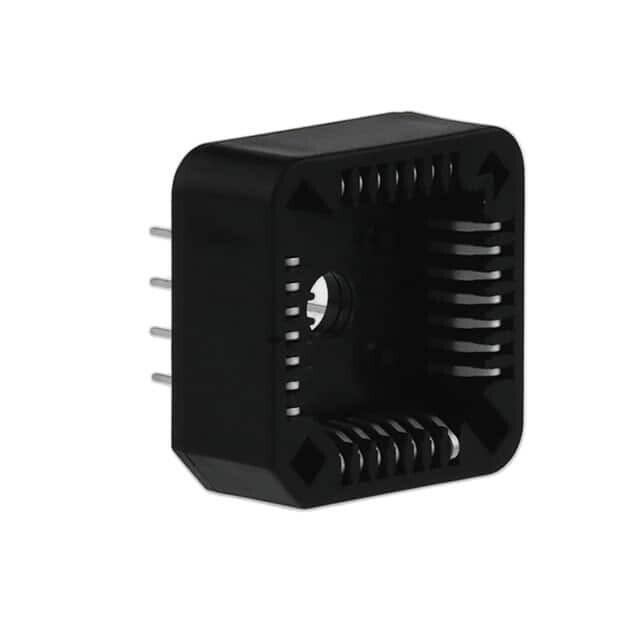

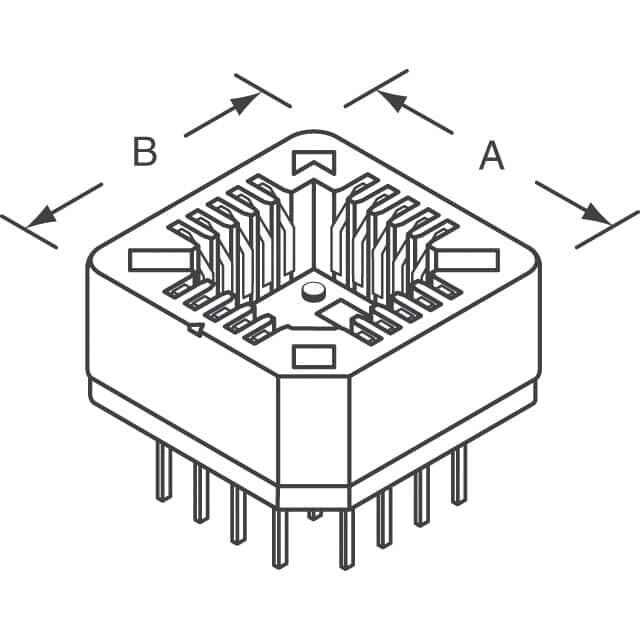

8428-11B1-RK-TP - 3M - CONN SOCKET PLCC 28POS TIN | |
Packaging | Tube |
Features | Closed Frame |
Mounting Type | Through Hole |
Type | PLCC |
Operating Temperature | -40°C ~ 105°C |
Number of Positions or Pins (Grid) | 28 (4 x 7) |
Termination | Solder |
Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
Pitch - Mating | 0.050" (1.27mm) |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
Contact Material - Mating | Copper Alloy |
Pitch - Post | 0.100" (2.54mm) |
Contact Finish - Post | Tin |
Contact Finish Thickness - Post | 160.0µin (4.06µm) |
Contact Material - Post | Copper Alloy |
