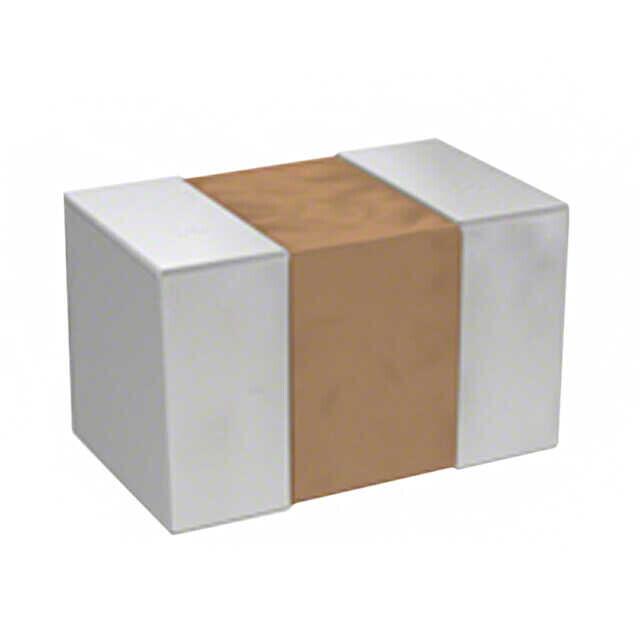

MLF1608C220KTA00 - TDK CORPORATION - FIXED IND 22UH 2MA 1.7 OHM SMD | |
Packaging | Cut Tape (CT) |
Tolerance | ±10% |
Package / Case | 0603 (1608 Metric) |

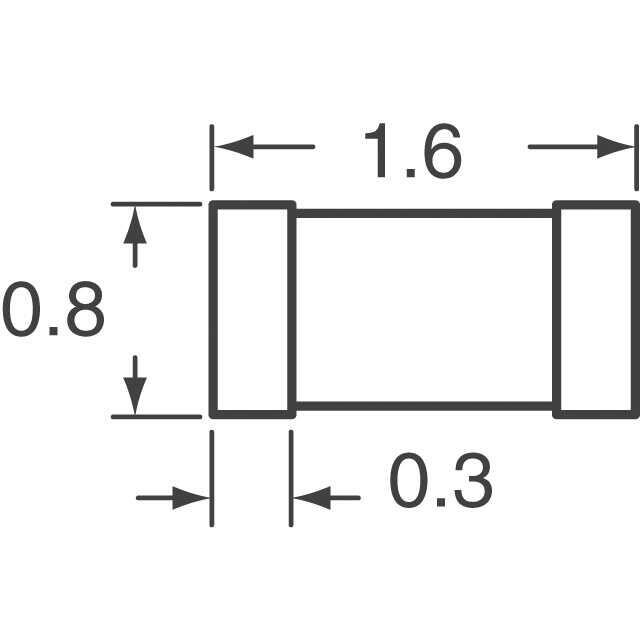

Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
Mounting Type | Surface Mount |
Shielding | Shielded |
Type | Multilayer |
Operating Temperature | -40°C ~ 85°C |
DC Resistance (DCR) | 1.7Ohm Max |
Q @ Freq | 20 @ 1MHz |
Frequency - Self Resonant | 18MHz |
Ratings | - |
Current - Saturation (Isat) | - |
Material - Core | Ferrite |
Inductance Frequency - Test | 1 MHz |
Supplier Device Package | 0603 (1608 Metric) |
Height - Seated (Max) | 0.037" (0.95mm) |
Inductance | 22 µH |
Current Rating (Amps) | 2 mA |
