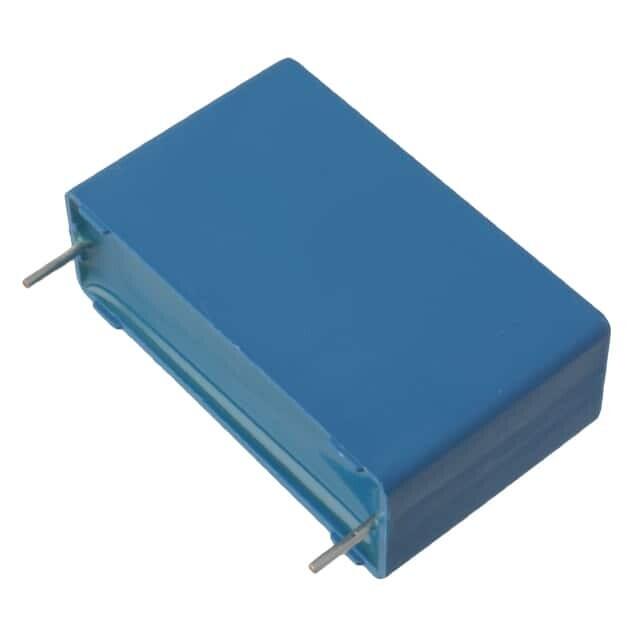

B32676E6205K000 - EPCOS - TDK ELECTRONICS - CAP FILM 2UF 10% 630VDC RADIAL | |
Packaging | Bulk |
Tolerance | ±10% |
Features | Long Life |
Package / Case | Radial |
Mounting Type | Through Hole |
Operating Temperature | -40°C ~ 105°C |
Applications | DC Link, DC Filtering |
Lead Spacing | 1.476" (37.50mm) |
Termination | PC Pins |
Ratings | - |
Dielectric Material | Polypropylene (PP), Metallized |
Voltage Rating - AC | - |
Voltage Rating - DC | 630V |

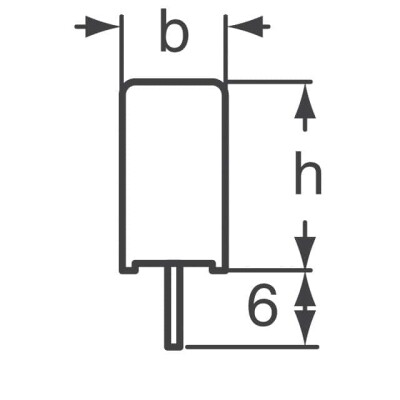

Height - Seated (Max) | 0.866" (22.00mm) |
Capacitance | 2 µF |

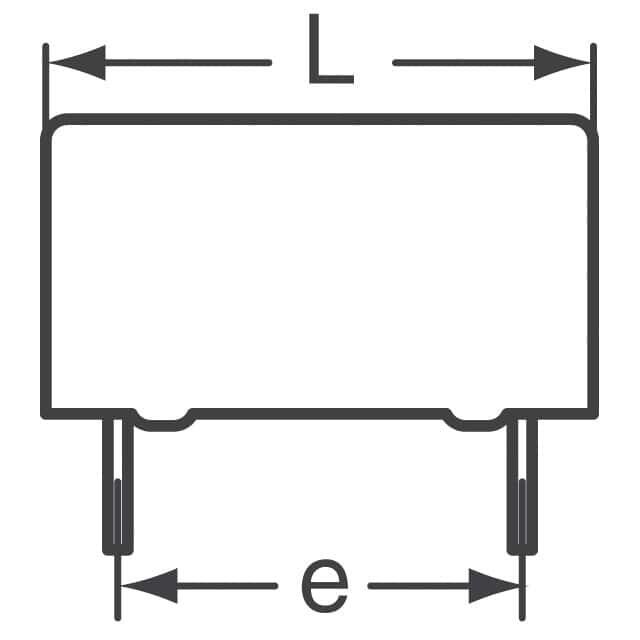

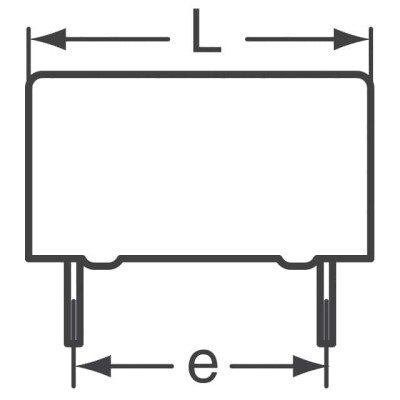

Size / Dimension | 1.654" L x 0.472" W (42.00mm x 12.00mm) |
