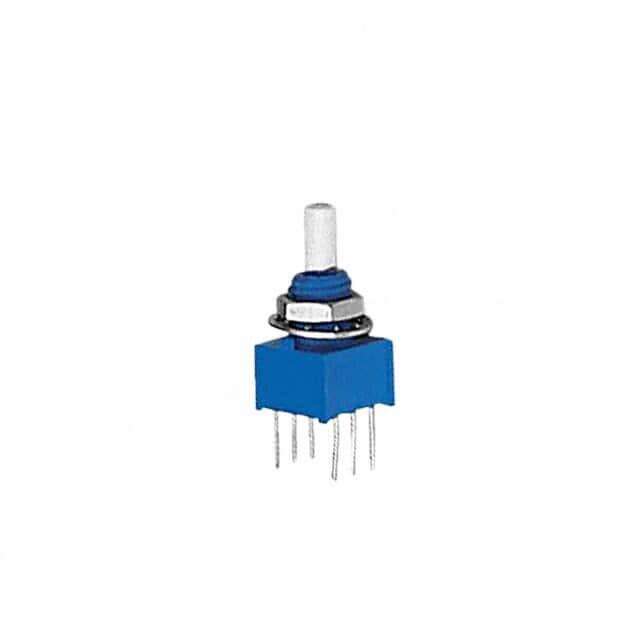

| 3310H-003-103L - BOURNS INC. - POT 10K OHM 1/4W PLASTIC LINEAR | |
| Packaging | Bulk |
| Resistance (Ohms) | 10k |
| Power (Watts) | 0.25W, 1/4W |
| Tolerance | ±20% |
| Features | Sealed |
| Temperature Coefficient | ±1000ppm/°C |
| Adjustment Type | Top Adjustment |
| Mounting Type | Panel Mount |
| Termination Style | PC Pins |
| Bushing Thread | 1/4-32 |
| Actuator Length | 0.500" (12.70mm) |
| Actuator Type | Slotted |
| Built in Switch | Rotary, SPDT |
| Actuator Diameter | 0.125" (3.18mm) |
| Resistive Material | Conductive Plastic |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1 |
