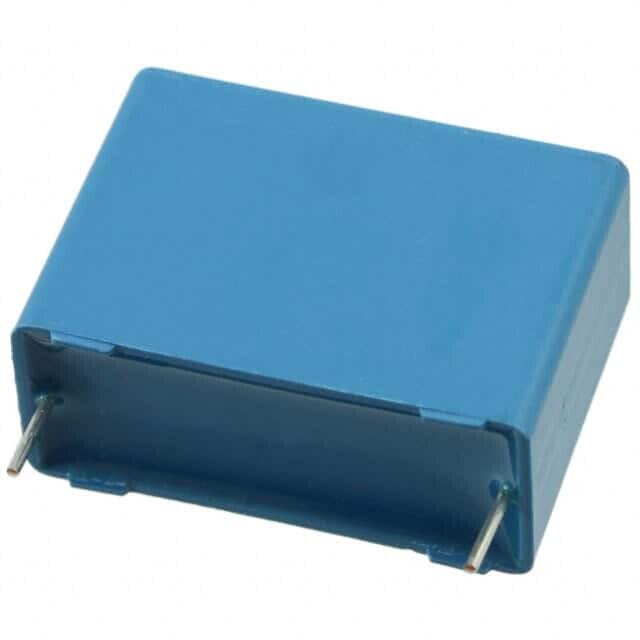

B32654A6105K000 - EPCOS - TDK ELECTRONICS - CAP FILM 1UF 10% 630VDC RADIAL | |
Packaging | Bulk |
Tolerance | ±10% |
Features | - |
Package / Case | Radial |
Mounting Type | Through Hole |
Operating Temperature | -55°C ~ 100°C |
Applications | DC Link, DC Filtering; High Pulse, DV/DT |
Lead Spacing | 1.083" (27.50mm) |
Termination | PC Pins |
Ratings | AEC-Q200 |
Dielectric Material | Polypropylene (PP), Metallized |
Voltage Rating - AC | 250V |
Voltage Rating - DC | 630V |
Height - Seated (Max) | 0.906" (23.00mm) |
Capacitance | 1 µF |
Size / Dimension | 1.240" L x 0.531" W (31.50mm x 13.50mm) |
