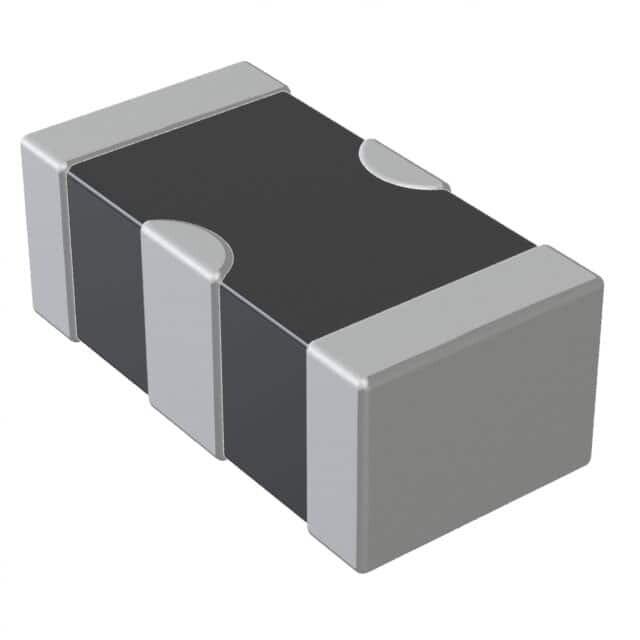

NFM21PC104R1E3D - MURATA ELECTRONICS - CAP FEEDTHRU 0.1UF 20% 25V 0805 | |
Packaging | Cut Tape (CT) |
Tolerance | ±20% |
Voltage - Rated | 25V |

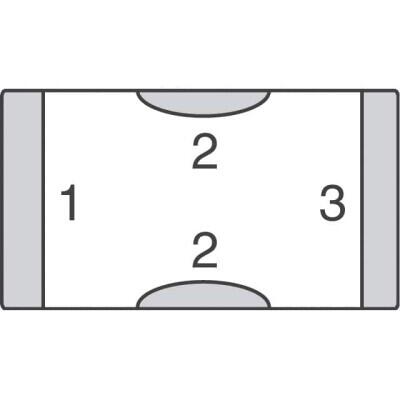

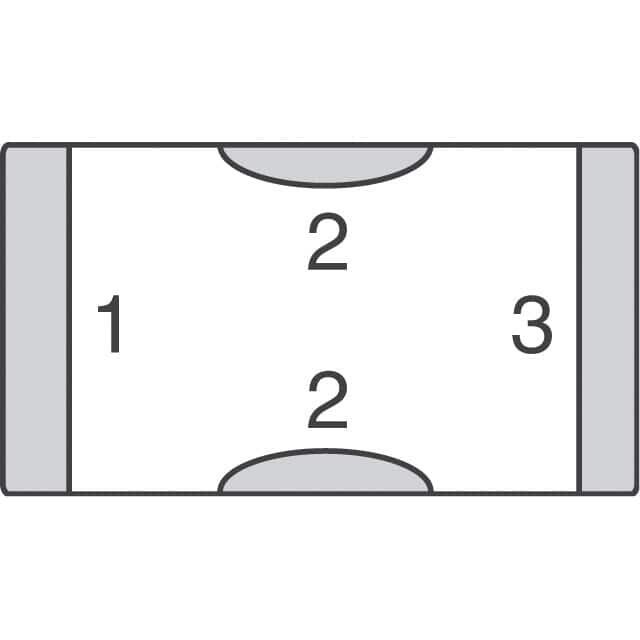

Package / Case | 0805 (2012 Metric), 3 PC Pad |
Temperature Coefficient | - |

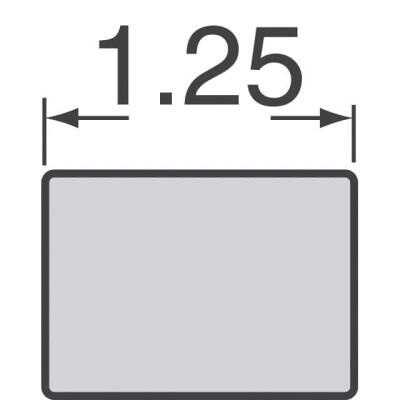

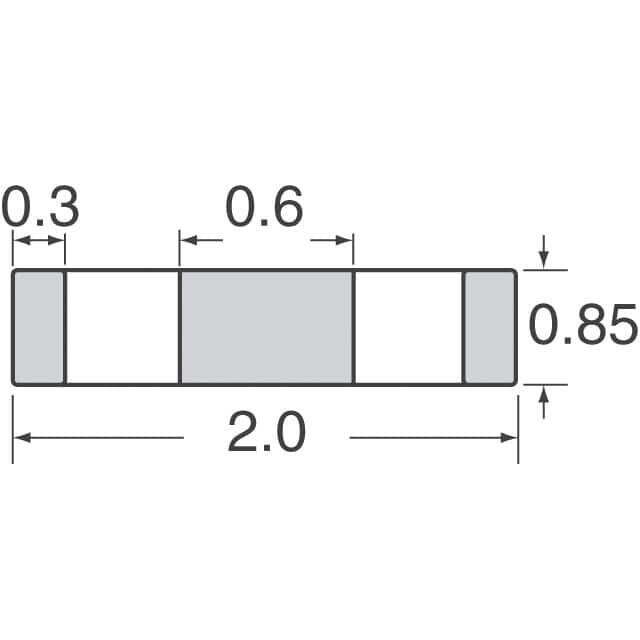

Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
Mounting Type | Surface Mount |
Thread Size | - |
Operating Temperature | -55°C ~ 125°C |
Insertion Loss | - |
Ratings | - |
Height (Max) | 0.037" (0.95mm) |
DC Resistance (DCR) (Max) | 30mOhm |
Capacitance | 0.1 µF |
Current | 2 A |
